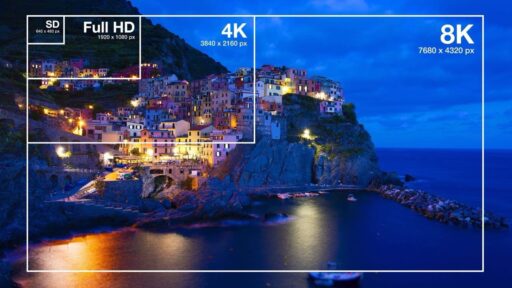

Camera resolution, including HD cameras, Full HD, and 4K resolution, is vital for CCTV resolution and choosing the best surveillance camera for your needs.
Camera resolution plays a pivotal role in the effectiveness of CCTV systems, directly influencing video quality and the ability to capture critical details. Terms like HD cameras, Full HD, and 4K resolution refer to different levels of image clarity, with higher resolutions providing more detail for identifying faces, license plates, and objects in surveillance footage. Advances in CCTV resolution technology have significantly enhanced the capabilities of surveillance cameras, enabling better security coverage in both residential and commercial environments. This guide will explore HD (720p), Full HD (1080p), and 4K (2160p) resolutions to help you choose the right surveillance camera for your needs.
What Is Camera Resolution in CCTV Systems?
Camera resolution refers to the number of pixels in an image, typically measured as width x height (e.g., 1920 x 1080). The greater the number of pixels, the clearer and more detailed the image produced by a surveillance camera. Resolutions are also commonly expressed in megapixels (MP), with one megapixel equaling one million pixels. For example, a Full HD camera (1920 x 1080) has approximately 2.1 megapixels.
How Camera Resolution Affects Image Quality
Higher resolutions (CCTV resolution) provide more clarity and detail in surveillance footage, enabling users to identify people, vehicles, or objects more accurately. Pixel density, or the concentration of pixels within a specific area, also affects image sharpness, particularly when zooming or cropping video footage.
Camera Resolution and Field of View
Resolution impacts how much detail can be captured within a camera’s field of view (FoV). Higher resolutions allow for wider coverage without compromising image quality, making them ideal for large or complex areas.
Resolution vs. Compression
Higher resolutions require more storage and bandwidth. Compression standards like H.264 and H.265 help reduce file sizes by encoding video efficiently while preserving quality. H.265 is particularly effective for managing large files from 4K resolution (CCTV resolution) cameras.
Understanding HD, Full HD, and 4K Camera Resolution
HD Resolution (720p)
- Pixel Count: HD resolution contains 1280 x 720 pixels, offering basic clarity for smaller surveillance needs.
- Applications: HD cameras are commonly used in low-budget setups, such as small indoor spaces or homes, where extreme detail is not required.
- Advantages:
- Affordable and widely available.
- Lower storage and bandwidth requirements compared to higher resolutions.
- Limitations:
- Limited detail for long-range or high-security applications.
- May not be sufficient for identifying fine details like faces or license plates.
Full HD Resolution (1080p)
- Pixel Count: Full HD resolution contains 1920 x 1080 pixels, providing more clarity and detail than HD.
- Applications: Ideal for residential setups, retail stores, and small to medium-sized offices.
- Advantages:
- Improved image quality and sharpness.
- Versatile and suitable for most CCTV systems.
- Moderate storage and bandwidth requirements.
- Limitations:
- Increased storage needs compared to HD.
- May not capture sufficient detail for expansive outdoor areas.
4K Resolution (2160p)
- Pixel Count: 4K resolution contains 3840 x 2160 pixels, offering four times the detail of Full HD.
- Applications: Perfect for high-security environments such as airports, casinos, or large parking lots.
- Advantages:
- Exceptional detail, ideal for zooming and cropping footage.
- Suitable for large or high-risk areas requiring fine detail.
- Limitations:
- High storage and bandwidth requirements.
- Higher upfront cost for cameras and supporting equipment.
How Does Camera Resolution Affect CCTV System Performance?
Detail and Clarity
Higher resolutions (CCTV resolution) improve the ability to identify critical details, such as facial features or vehicle license plates, making them essential for high-security applications.
Zooming and Cropping
Higher resolutions allow users to zoom in or crop video footage without losing clarity, which is particularly important for forensic analysis in surveillance footage.
Storage Requirements
Resolutions like 4K significantly increase storage demands. Compression technologies like H.265 mitigate this issue by reducing file sizes without compromising video quality.
Bandwidth Usage
Higher resolutions (CCTV resolution) consume more bandwidth in IP-based CCTV systems, which can strain network performance. Network optimization techniques, such as using high-quality Ethernet cables and compression, are crucial for maintaining video quality.
Low-Light Performance
Resolution interacts with features like infrared (IR) night vision and Wide Dynamic Range (WDR). While higher resolution improves detail, these complementary features ensure clarity in low-light or high-contrast environments.
Real-World Applications of Different Resolutions
- HD (720p): Suitable for small businesses, homes, and low-traffic areas where basic coverage is sufficient.
- Full HD (1080p): Commonly used in retail stores, schools, and medium-sized offices for balanced detail and storage efficiency.
- 4K (2160p): Ideal for large-scale security, such as airports, stadiums, and high-risk industrial sites, where detailed surveillance is critical.
Key Considerations When Choosing a Resolution for Surveillance Cameras
Environment
The size and type of the monitored area influence resolution selection. For example, small indoor spaces may only need HD cameras, while large outdoor areas require 4K cameras.
Budget
Higher-resolution cameras, like 4K, require greater storage and bandwidth, which can increase costs. Evaluate your budget against your security needs.
Integration with Existing Systems
Ensure the resolution of new cameras is compatible with your NVR, monitors, and software to avoid integration issues.
Future Scalability
Planning for future upgrades, such as transitioning from HD to 4K resolution, ensures your CCTV system remains relevant and effective over time.
Comparing HD, Full HD, and 4K Camera Resolution
| Resolution | Pixel Count | Best For | Advantages | Limitations |
|---|---|---|---|---|
| HD (720p) | 1280 x 720 | Small indoor spaces, budget setups | Low cost, reduced storage and bandwidth needs | Limited detail for large areas |
| Full HD (1080p) | 1920 x 1080 | Residential, retail, commercial | Improved clarity, widely available, affordable | Moderate storage and bandwidth requirements |
| 4K (2160p) | 3840 x 2160 | High-security, large outdoor areas | Superior detail, ideal for zooming and cropping | High cost, significant storage needs |
Benefits and Limitations of HD, Full HD, and 4K Camera Resolution
- HD Cameras: Affordable and storage-efficient but limited in detail for large or complex areas.
- Full HD: Balanced option offering good clarity and storage efficiency for most applications.
- 4K Cameras: Exceptional detail and coverage but requires higher costs for storage, bandwidth, and infrastructure upgrades.
Conclusion
Choosing the right camera resolution is essential for designing effective CCTV systems. While HD cameras may suffice for basic setups, Full HD and 4K resolution (CCTV resolution) cameras provide the clarity and detail needed for more demanding environments. Balancing resolution with storage and bandwidth requirements ensures your surveillance camera system is both efficient and cost-effective. By understanding your environment, budget, and scalability needs, you can select the perfect resolution to optimize your security outcomes.
