Discover 19-Inch Server Rack Standard specifications, EIA-310-D compliance, Rack Unit measurements, and Data Center equipment compatibility guidelines.

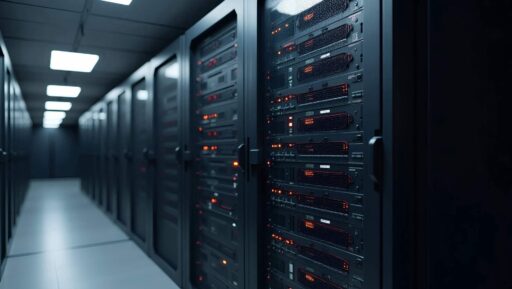

When you walk into any professional Data Center today, you’ll notice equipment mounted in uniform frames. These aren’t random measurements. The 19-Inch Server Rack Standard has shaped IT infrastructure for over a century, and understanding EIA-310-D specifications remains crucial for anyone working with technology equipment. This Standard defines how we organize, mount, and manage everything from servers to networking devices in Data Center environments worldwide using the Rack Unit measurement system.
The story begins in 1922 when AT&T engineers needed a better way to house telephone repeater equipment. They created a modular panel system with vertical supports spaced 19.5 inches between centers. Every panel height was a multiple of 1.75 inches, establishing the Rack Unit foundation. This simple decision became the foundation of modern computing infrastructure. By 1934, the Server Rack Standard was firmly established with specific hole spacing and mounting requirements that manufacturers still follow today, later formalized as the EIA-310-D specification.
Understanding the Foundation of Modern Data Centers
Modern Data Center operations depend entirely on standardized equipment mounting. Without the 19-Inch Server Rack Standard, every manufacturer would create proprietary systems. You’d face compatibility nightmares and wasted space. The Server Rack Standard eliminates these problems by creating a universal framework that works across brands, technologies, and applications.
The beauty of this Server Rack system lies in its simplicity. Equipment manufacturers design their products to fit within the 19-Inch width specification. Data Center managers can confidently purchase Server Rack equipment knowing it will fit existing infrastructure. This interoperability saves money, reduces complexity, and enables modular growth as technology needs evolve over time.
Historical Origins of the 19-Inch Standard
From Telephone Equipment to Universal IT Standard
The telephone industry drove early standardization efforts. AT&T’s engineering department faced a growing network requiring thousands of repeaters and termination points. Custom-built housings for each installation proved expensive and inefficient. Here’s the thing: they needed a scalable solution that worked everywhere.
Their answer was elegant. Create standardized mounting panels that fit universal vertical supports. The 19-inch width provided enough space for complex circuitry while maintaining compact dimensions. The 1.75-inch height increment, now known as the Rack Unit, allowed flexible stacking of different equipment types. This Server Rack Standard spread rapidly throughout telecommunications, then computing, and eventually every technology sector. The specifications were later formally documented in EIA-310-D.
The Role of AT&T in Establishing Rack Dimensions
AT&T didn’t just suggest these dimensions. They implemented them across their entire national network. You’ll find that this widespread adoption made the measurements a de facto industry Standard long before formal standardization bodies existed. Other telephone companies adopted the same specifications to ensure compatibility with AT&T’s vast infrastructure.
By the time computers emerged as mainstream business tools, the 19-Inch Server Rack format was already proven and widely available. Early computer manufacturers simply adapted their equipment to fit existing telecommunications racks. This decision accelerated computer adoption because businesses already had suitable Server Rack mounting infrastructure in place. The formal EIA-310-D specification came later to document these established practices.
EIA-310-D Standard Specifications
Official Dimensional Requirements
The Electronic Industries Alliance formalized the 19-Inch Server Rack specifications in document EIA-310-D. This technical Standard defines precise measurements that ensure worldwide compatibility. The internal width between mounting rails measures exactly 19 inches or 482.6 millimeters. Equipment front panels must measure 19 inches wide, including the mounting ears that attach to rack posts.
The minimum rack opening measures 17.72 inches (450mm) to accommodate equipment chassis. You’ll notice that actual equipment must be narrower than 17.75 inches to slide through the mounting frame. This difference between front panel width and chassis width often confuses newcomers to Server Rack design.
Mounting Width and Panel Specifications
The 19-Inch measurement refers specifically to the front panel width. This is measured from the outer edge of one mounting ear to the outer edge of the opposite mounting ear. The actual distance between mounting holes on the vertical rails is 18.31 inches (465.1mm). This spacing accommodates the mounting flanges while maintaining the 19-Inch front panel appearance.
Most manufacturers follow these specifications precisely to avoid compatibility issues. Dell, HP, IBM, Cisco, and virtually every major technology company adheres to the EIA-310-D Standard for their rack-mountable products. You can confidently mix equipment from different vendors in the same rack because they all follow identical dimensional requirements.
Vertical and Horizontal Hole Spacing Standards
Vertical hole spacing follows a specific pattern within each Rack Unit. Three holes appear in each 1.75-inch Rack Unit section, spaced at 0.5 inches, 0.625 inches, and 0.625 inches. This pattern repeats up the entire height of the Server Rack. The middle hole sits at the center of each Rack Unit, with the top and bottom holes offset by 0.625 inches.
Horizontal spacing between vertical mounting rails is standardized at 18.312 inches (465.1mm) according to EIA-310-D specifications. Some manufacturers use mounting slots instead of fixed holes to accommodate slight variations. This flexibility helps when working with equipment that doesn’t precisely match the EIA-310-D Standard spacing, though most modern Server Rack equipment fits perfectly.
Rack Unit (U) Measurement System
Defining the 1.75-Inch Standard
A Rack Unit, commonly abbreviated as U or RU, equals exactly 1.75 inches or 44.45 millimeters. This measurement became Standard because it provided adequate space for most electronic components while maximizing vertical density. Equipment height is always described in whole rack units or occasionally half units for specialized devices.
When someone mentions a “1U server,” they’re describing Server Rack equipment that occupies 1.75 inches of vertical rack space. A 2U device takes 3.5 inches, a 4U device requires 7 inches, and so forth. You calculate total Server Rack capacity by dividing available height by 1.75 inches, which tells you the maximum number of 1U devices you can install in your Rack Unit configuration.
Calculating Equipment Height Requirements
Planning Server Rack installations requires careful calculation of equipment heights using Rack Unit measurements. Start by listing every device you’ll mount, noting its Rack Unit size. Add these numbers together, including power distribution units, cable management accessories, and blank panels. Leave some empty space for future expansion and adequate airflow between high-heat devices.
A standard Data Center Server Rack typically stands 42U tall, providing 73.5 inches of usable mounting space. This height became popular because it maximizes vertical space without requiring step stools for maintenance. Taller 45U and 48U Server Rack configurations exist for high-density environments, while shorter 24U or 12U racks suit smaller installations.
Common Rack Heights in Data Centers
You’ll encounter several standard Server Rack heights across different environments following EIA-310-D guidelines. Wall-mounted Server Rack units often measure 6U to 12U, perfect for small offices or network closets. Half-height racks at 24U work well for medium-sized server rooms. The industry Standard 42U Server Rack dominates enterprise Data Center facilities because it offers the best balance of capacity and accessibility.
Some facilities deploy 45U, 47U, or even 52U racks to maximize vertical space utilization. These taller configurations work best where floor space costs exceed the inconvenience of reaching upper equipment. Edge computing locations might use compact 6U to 20U Server Rack systems because they house minimal equipment in constrained spaces. Each Rack Unit of vertical space becomes precious in these compact installations.
Key Components of 19-Inch Server Racks
Mounting Rails and Post Configurations

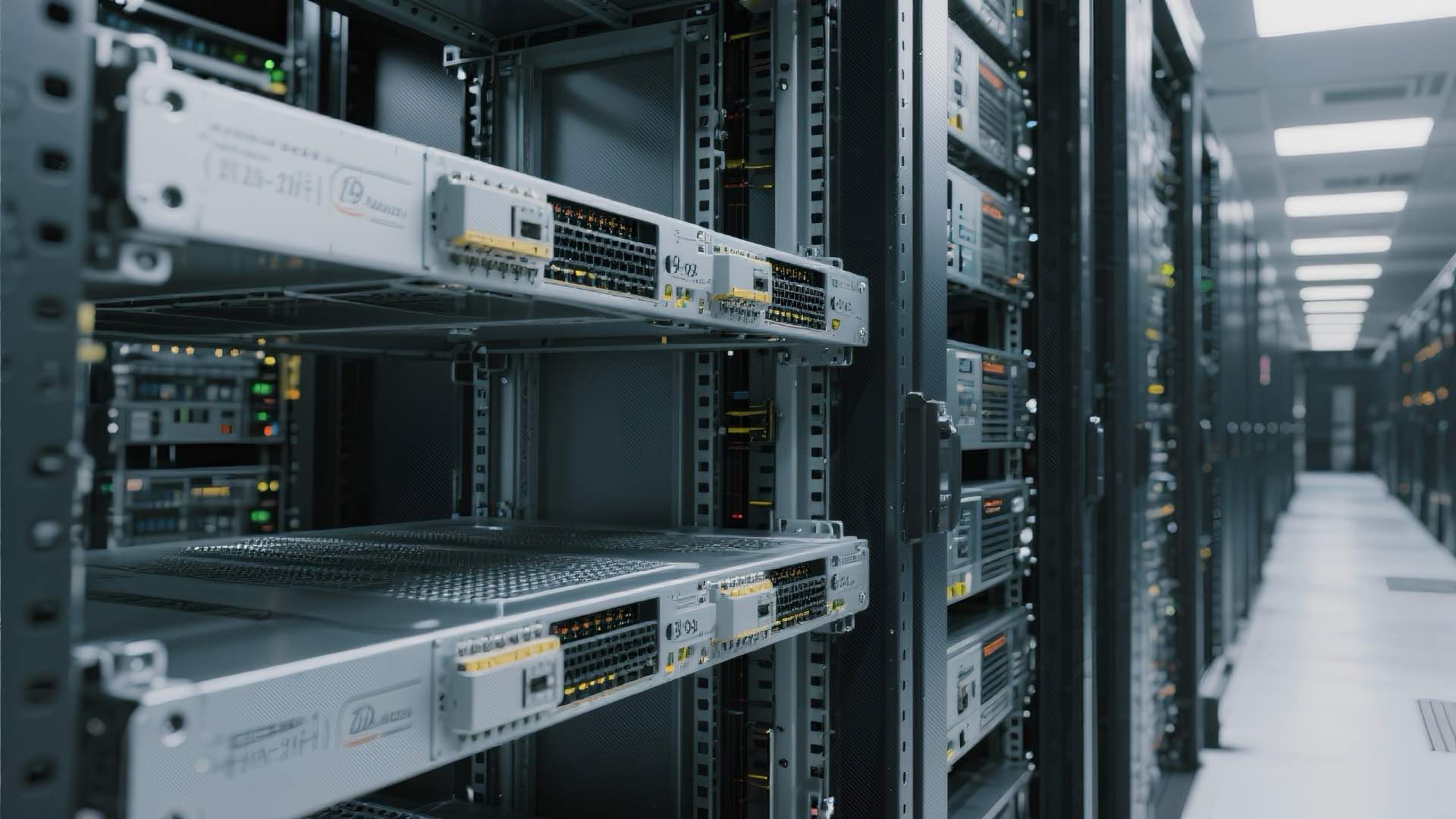

Vertical mounting rails form the backbone of every Server Rack. These rails contain the standardized holes or slots where equipment attaches. Rails are typically constructed from heavy-gauge steel to support substantial weight. The thickness varies by manufacturer, with premium racks using 2mm or thicker steel for maximum strength and rigidity.
Rails attach to vertical posts that form the rack frame. Post spacing determines the internal depth available for equipment. Most racks feature adjustable mounting rails that slide forward or backward to accommodate different equipment depths. This adjustability proves essential because Server Rack equipment depths vary significantly between manufacturers and models.
2-Post vs 4-Post Rack Designs
Two-post racks, also called relay racks, support equipment using only front mounting points. These open-frame designs work well for networking gear and telecommunications equipment. They provide excellent access and airflow but cannot support heavy servers or equipment requiring rear mounting support. Two-post racks are common in telecommunications facilities and network distribution closets.
Four-post racks offer mounting points at both front and rear. This configuration supports heavier equipment and allows use of sliding rails for easy maintenance access. Most Data Center environments use four-post racks because modern servers require rear support. The additional posts increase cost but provide necessary stability for dense, heavy equipment configurations.
Hole Types: Threaded, Square, and Round
Rack mounting holes come in three main varieties. Threaded holes have internal threads that accept bolts directly. These were common in older installations but can strip with frequent equipment changes. Square holes accommodate cage nuts, which are small spring-loaded fasteners that clip into the square opening. Cage nuts are replaceable and work better for frequently changed equipment.
Round holes work with specialized clips or require cage nuts. Square-hole racks with cage nuts have become the industry Standard because they offer tool-less installation options and easy nut replacement. You’ll find that modern 19-Inch Server Rack systems predominantly use square holes for maximum flexibility and ease of maintenance.
Why the 19-Inch Standard Matters
Equipment Interoperability Across Manufacturers
The 19-Inch Standard creates a level playing field for equipment manufacturers. You can purchase servers from Dell, networking switches from Cisco, storage arrays from NetApp, and mount them all in the same rack without adapters or modifications. This interoperability drives competition, reduces costs, and gives buyers freedom to choose best-of-breed solutions.
Without standardization, Data Center operators would face vendor lock-in and compatibility headaches. Imagine needing different racks for each manufacturer’s equipment. The logistics would be nightmarish. The Standard eliminates these concerns and lets IT professionals focus on functionality rather than mounting mechanics.
Space Optimization and Vertical Efficiency
Vertical mounting maximizes floor space utilization in expensive Data Center facilities. A standard 42U rack occupying just 0.36 square meters of floor space can house dozens of servers. This density is only possible because of precise standardization. You know exactly how much equipment fits in each rack, making capacity planning straightforward and accurate.
The Rack Unit system enables efficient space allocation. A mix of 1U switches, 2U servers, and 4U storage arrays can coexist in the same rack. You arrange equipment based on cooling requirements, cable routing needs, and operational access patterns. This flexibility wouldn’t exist without the modular Standard that defines every dimension precisely.
Simplified Installation and Maintenance
Standardized mounting simplifies physical installation dramatically. Technicians don’t need specialized training for each equipment type. Mount servers, switches, and storage using the same process and tools. This consistency reduces installation time, minimizes errors, and lowers labor costs across Data Center operations.
Maintenance becomes easier when equipment follows predictable patterns. You can quickly locate specific devices by their rack unit position. Replacement parts, mounting hardware, and accessories are universally available. This standardization extends to cable management systems, shelves, and cooling accessories that all use the 19-Inch mounting Standard.
Compliance Standards and Certifications
EIA-310-D Requirements
The EIA-310-D document specifies exact dimensions, tolerances, and mounting requirements for 19-Inch Server Rack systems. While the Electronic Industries Alliance no longer exists, the EIA-310-D standards remain authoritative. Compliance with EIA-310-D ensures equipment will physically fit and function in any standards-compliant rack worldwide. Most reputable manufacturers prominently advertise EIA-310-D compliance to assure customers of compatibility with their Server Rack infrastructure.
The Standard covers Rack Unit height, horizontal hole spacing, vertical hole patterns, minimum rack opening dimensions, and front panel width. It also establishes tolerances for each measurement. These tolerances account for manufacturing variations while maintaining interoperability. Server Rack equipment meeting EIA-310-D specifications works with racks from any compliant manufacturer using the standardized Rack Unit system.
IEC 60297 International Standards
The International Electrotechnical Commission published IEC 60297 to provide global standardization for the 19-Inch series. This Standard mirrors EIA-310-D requirements but uses metric measurements as primary values. IEC 60297 ensures that international manufacturers follow identical specifications, promoting worldwide equipment compatibility.
European and Asian manufacturers typically reference IEC 60297 for compliance documentation. The practical requirements match EIA-310-D exactly, just expressed in millimeters rather than inches. This parallel standardization means equipment certified under either Standard works identically in real-world installations.
DIN 41494 Specifications
Germany’s Deutsches Institut für Normung established DIN 41494 to cover 19-Inch rack mechanical structures. This Standard addresses cabinet dimensions, mounting configurations, and structural requirements. DIN 41494 provides additional specifications for rack enclosures beyond the mounting dimensions covered by EIA-310-D and IEC 60297.
Many European Data Center facilities specify DIN 41494 compliance alongside other standards. The combined requirements ensure racks meet structural, dimensional, and safety standards. Equipment certified under multiple standards demonstrates thorough engineering and broad market compatibility.
Practical Applications in Data Centers
Enterprise Data Center Deployments
Large enterprise Data Center facilities rely heavily on standardized 19-Inch Server Rack systems. Rows of 42U Server Rack units house thousands of servers, switches, and storage devices. The standardization enables efficient layouts with hot aisle/cold aisle configurations for optimal cooling. Uniform Server Rack dimensions simplify planning, procurement, and ongoing operations at scale.
High-density computing environments push the 19-Inch Standard to its limits. Modern servers generate significant heat in compact 1U and 2U form factors. The Standard rack dimensions work with sophisticated cooling systems including in-row coolers, rear-door heat exchangers, and liquid cooling solutions. Standardization makes these advanced cooling systems practical to deploy across diverse equipment types.
Telecommunications Facilities
Telecommunications companies pioneered 19-Inch rack usage and remain major users today. Central offices, switching centers, and cell tower sites all use standardized racks. Telecom equipment often requires deep racks to accommodate extensive cabling and legacy equipment. The Standard width ensures new equipment integrates with infrastructure that may be decades old.
Telecommunications racks often feature cable management systems more extensive than typical IT racks. The 19-Inch Standard accommodates various cable routing accessories, fiber management systems, and power distribution tailored to telecom needs. This flexibility demonstrates how a simple dimensional Standard supports vastly different applications.
Server Rooms and IT Closets
Smaller installations benefit equally from standardization. A single 19-Inch rack in an office closet houses routers, switches, servers, and UPS systems. The Standard dimensions mean you can purchase any brand of equipment confident it will fit. Wall-mounted racks bring 19-Inch Standard benefits to spaces too small for floor-standing enclosures.
Medium-sized businesses often deploy 6U to 24U racks for their IT infrastructure. These smaller racks follow identical mounting standards as their larger Data Center counterparts. You can start with a small rack and migrate equipment to larger racks as needs grow without replacing any mounted devices.
Compatibility Considerations
Understanding Front Panel Width vs Chassis Width
Many people misunderstand what “19-Inch” actually measures. The front panel, including mounting ears, spans 19 inches. The equipment chassis behind this panel must be narrower to slide through the mounting frame. Most servers measure around 17.5 inches wide, leaving clearance on each side for installation and airflow.
This distinction matters when selecting racks for specific equipment. Check both front panel width and chassis width specifications. Some specialized equipment has wider chassis that require 23-inch racks despite having 19-Inch mounting ears. Most standard IT equipment fits 19-Inch racks perfectly, but always verify dimensions before purchasing.
Depth Requirements for Modern Equipment
Equipment depth varies far more than width. Older networking gear might be only 12 inches deep. Modern high-density servers can exceed 36 inches. Your rack must accommodate the deepest equipment you’ll mount, plus additional space behind for cable management. Most Data Center racks offer depths between 39 inches and 47 inches to handle diverse equipment.
Adjustable mounting rails help with depth variations. You can position rails closer together for shallow equipment or spread them apart for deep servers. This adjustability is crucial because equipment depths continue increasing as manufacturers pack more capabilities into each Rack Unit of height.
Adjustable Mounting Rail Systems
Modern Server Rack designs feature mounting rails that slide along tracks in the vertical posts. This adjustability accommodates different equipment depths without requiring different rack models. Technicians can reposition rails in minutes to optimize space for specific installations. Rail adjustment mechanisms vary by manufacturer but typically use tool-less latches or simple screws.
Quality adjustable systems maintain precise alignment as rails move. The mounting holes must remain perfectly vertical and properly spaced at all adjustment positions. Cheap racks sometimes lose alignment when rails are moved, creating equipment installation problems. Premium racks maintain Standard compliance throughout their adjustment range.
Common Challenges and Solutions
Equipment Fit and Compatibility Issues
Despite standardization, compatibility problems occasionally arise. Some manufacturers deviate slightly from Standard dimensions, usually in equipment depth or mounting ear thickness. Test-fit critical equipment before final installation whenever possible. Check manufacturer specifications carefully, particularly for depth and rear mounting requirements.
Deeper equipment poses challenges in existing racks with fixed mounting rails. Solutions include replacing rails with adjustable versions, using shorter patch cables, or relocating equipment to deeper racks. Plan for equipment evolution by choosing racks with adequate depth capacity for future needs.
Cable Management Integration
Proper cable management is essential in 19-Inch racks but challenging to implement. Vertical cable managers mount alongside equipment, consuming valuable rack space. Horizontal cable managers install between equipment pieces, adding to overall height requirements. Balance cable organization needs against equipment capacity when planning rack layouts.
The 19-Inch Standard width limits cable management space on either side of mounted equipment. Wider racks (600mm or 800mm external width) provide more room for vertical cable management. Some facilities use dedicated cable management racks positioned beside equipment racks to maintain clean cable routing without sacrificing equipment capacity.
Load Capacity and Weight Distribution
Standard 19-Inch mounting dimensions don’t guarantee adequate load capacity. Rack structural strength varies dramatically between manufacturers. A rack filled with heavy servers might exceed its rated capacity, creating safety hazards. Always check rack load ratings and distribute weight appropriately within each rack.
Four-post racks typically support more weight than two-post designs. Floor-standing racks handle heavier loads than wall-mounted versions. Position heavy equipment low in the rack to lower the center of gravity. Use mounting rails that support equipment at both front and rear to distribute load properly. These practices prevent rack failure and equipment damage.
Future of the 19-Inch Standard
Emerging 21-Inch OCP Rack Format
The Open Compute Project introduced a 21-inch rack format optimized for hyperscale Data Center operations. Major cloud providers including Facebook, Microsoft, and Google have adopted this wider format. The additional width improves cooling efficiency and accommodates custom server designs. Industry analysts predict 21-inch OCP racks may dominate hyperscale facilities by 2030.
This evolution doesn’t make 19-Inch racks obsolete. Enterprise Data Center facilities and smaller operations will continue using 19-Inch Standard equipment for decades. The established ecosystem of compatible products, trained technicians, and existing infrastructure ensures the 19-Inch Standard remains relevant for most organizations.
Maintaining Backward Compatibility
As new rack formats emerge, maintaining compatibility with existing infrastructure becomes crucial. Many organizations operate mixed environments with both old and new equipment. The long service life of Data Center infrastructure means 19-Inch racks installed today might operate for 20 years or more.
Equipment manufacturers face pressure to support multiple rack standards simultaneously. Servers with interchangeable mounting brackets let customers choose between 19-Inch and 21-inch configurations. This flexibility helps organizations transition gradually rather than requiring disruptive forklift upgrades of entire Data Center facilities.
Evolution for High-Density Computing
High-performance computing and AI workloads push Server Rack standards in new directions. Equipment power density continues increasing, challenging the cooling capabilities of traditional Server Rack designs. The 19-Inch Standard must evolve to accommodate liquid cooling, higher power distribution, and increased thermal loads while maintaining equipment compatibility across all Rack Unit configurations.
Innovative solutions include hybrid cooling systems, rear-door heat exchangers, and in-rack CDU units all designed to work within Standard 19-Inch dimensions following EIA-310-D specifications. These technologies extend the Server Rack Standard‘s usefulness for demanding applications. The fundamental mounting dimensions and Rack Unit measurements remain unchanged while cooling and power delivery systems advance to meet modern Data Center requirements.
